HTML observability: derived views over canonical JSON

The accepted HTML observability contract describes single-file, regenerable views over existing JSON. It does not introduce a planner, dashboard daemon, server, or new source of project authority. The archived Phase 0/1 plan records the graph implementation and acceptance. The current scope audit owns remaining umbrella obligations. litai render html and its staleness gate now share source loading and exact output reconstruction. The active roadmap records qualification by source revision; implemented views are not automatically release-qualified. Typed core records live in literate_ai.contracts.html_observability. adapters/html_surfaces.py registers these project-scoped views at version 1.0.0:

adapters/html_emitter.py now emits inspected single-file bytes for that source. Its complete DAG view uses one SRI-pinned Cytoscape.js library, fixed inline controls and the same artifact's native catalog/relationship/source disclosures as a readable fallback. The emitter itself does not publish files or exercise a cache policy; adapters/html_render.py now owns that service and cli/render.py wraps it. adapters/html_source_excerpts.py supplies bounded, hash-checked local Markdown/JSON previews using the existing graph's path/identity pairs. The emitter embeds these observations as JSON and escaped native previews. Missing pairs are explicitly unavailable; declared sources that are unsafe, changed, oversized or not UTF-8 refuse the observation. Display truncation occurs only after verifying the complete source bytes, without changing graph JSON.

Contract responsibilities

All names below share the prefix urn:literate-ai:schema:v1:html-observability-. The linked schema, not this table, owns fields and validation rules.

Identity without self-reference

An HTML file cannot contain its own final digest: inserting that digest changes the file. The embedded litai-provenance JSON therefore carries provenance and render-input identities; the enclosing artifact record carries the completed file identity. Staleness compares the current input/view/renderer identity with the retained one. Task IDs and wall-clock observations must not manufacture new render-input identities. The renderer still has to prove deterministic output; a schema-valid record alone does not prove any of these content relationships.

The core's render_inputs_identity hashes exactly the ordered source bindings, view and renderer through the existing canonical JSON identity helper. It does not accept task/correlation metadata or timestamps. HtmlProvenance.create adds the explicitly supplied UTC observation and declared assets, then hashes the resulting provenance excluding its own identity. Reading provenance checks both identities instead of trusting a caller-supplied digest. Source labels and asset identifiers must be unambiguous within the record.

HtmlArtifact.from_bytes binds the completed byte sequence and its size; it does not attest that arbitrary bytes are safe or self-contained HTML. The emitter owns that inspection. Artifact construction also checks the declared external-reference count against the declared asset list. Typed records reject unsafe portable path representations, malformed calendar instants and invalid SHA-256/384/512 SRI encodings; filesystem containment and browser enforcement remain separate runtime checks.

The emitter binds its implementation, inline-view and excerpt-projection modules, presentation profile and ordered asset declarations into the template identity. An asset URL, kind, order or SRI change cannot retain the same render-input identity; neither can the private static-assembly primitive masquerade as the full DAG. It inspects the completed document's closed element and attribute vocabulary, balanced structure, fragment links, exact inline stylesheet, JSON blocks, exact inline application script and external references before computing the final artifact record. This is an assertion about its own template, not a sanitizer for arbitrary HTML or CSS. Visible strings use HTML escaping; embedded JSON separately escapes HTML delimiters and JavaScript line separators, preserving decoded canonical input.

This low-level byte API requires an explicitly supplied framework distribution identity, catalog release and UTC observation. It does not discover or qualify an installation. The P1.5 service resolves the actual installed distribution and owns publication, cache custody and repeat-render observation reuse; a synthetic development-fixture binding must never be substituted for installed-release evidence. Identical supplied inputs produce identical bytes. Changing the observation changes provenance and file bytes, but not the semantic render-input identity.

P1.5 groundwork in adapters/html_framework.py reuses the Standard installed-wheel observer and additionally requires the imported package and loaded framework modules to belong to that wheel's recorded payload. Both active schema catalogs must match its exact member inventory and bytes, including when an operator selects a catalog override. Source checkouts, editable or ambiguous installations, mixed import roots and changed catalogs refuse with the existing render.surface_unavailable code. The rendering service repeats this observation before publication. This is an in-process installation check, not an OS isolation guarantee or installed-release proof.

Staleness verification reconstructs a current artifact from its first complete, immutable input observation, including excerpts and external assets. It then independently reloads the complete inputs, installation and output bytes before returning a verdict. Pure reconstruction does not trigger a third discovery; no observation is reused across verification calls.

The existing storage.ReferenceIndex now supports read-only snapshots without creating directories or lock files. It retains CAS verification on resolution, rejects writes, bounds index reads and refuses observed publication drift rather than reporting it as a cache miss. Its writable default and reference wire format are unchanged.

CLI publication and cache behavior

litai render html wraps the typed result in the existing CLI envelope and returns nonzero on a typed refusal. Installed help owns the flags. The service uses the existing object-cache ownership marker, CAS and reference index beneath resolved OBJ_DIR. A cache hit must reproduce the exact current artifact at its retained observation time; correct CAS hashes alone do not make a hit valid. Reusing a hit at another output path preserves its bytes and changes only the enclosing path field. Off/write-only modes observe the current UTC clock; the accepted contract has whole second precision, so independent observations in one second can have identical bytes. Read-only mode may publish the requested HTML but creates no cache directories, markers, blobs, aliases or lock files. The CLI suppresses its incidental performance cache span for this operation. Output publication still uses the existing project lifecycle lock, outside the object cache, in every mode.

Publication rejects repository metadata paths, indirect paths, non-regular files, and output inside the HTML cache. A bounded existing file must reconstruct exactly from the supported template and its embedded observations before it can be replaced. Borrowed provenance does not admit edited visible content. This recognizes derived output, not source currency: stale inputs may be regenerated, but foreign/edited files and artifacts from an unrecognized template require a new destination. The service rechecks current source bytes and the installed binding immediately before publication. Temporary bytes are flushed before an atomic replacement; new destinations use a no-clobber link. Detected destination changes refuse, and cleanup preserves a foreign replacement at the temporary pathname. These cooperative-lock and snapshot checks are not same-user OS isolation. Cache failure does not publish an output file; failed later publication may retain immutable cache objects for a verified observation, not a successful output claim.

Local CLI, cache and publication regressions exercise the real graph producer and emitter with explicitly synthetic installation discovery. A separate real non-editable-wheel run now qualifies the derived project's CLI/cache behavior. The update/browser journey and hosted integration remain separate gates.

Single-file and network boundary

Application JavaScript and CSS are inline, with no companion asset tree or bundler. The accepted contract permits explicit HTTPS CDN library references with SRI instead of vendoring libraries inline. This keeps library bytes independently pinned and visible in provenance. It does not make a CDN-dependent interactive view offline; the Phase 1 renderer must provide an honest readable fallback when the library is unavailable. inline-only refuses the library-dependent DAG view. Loading the library is deferred so native content can appear first. Local catalog filtering, native node selection and source inspection continue after CDN failure; the pan/zoom/layout controls stay disabled with an explicit unavailable message. With JavaScript disabled, the native disclosures still expose verified source previews.

adapters/html_dag_view.py owns fixed inline CSS/JavaScript and the exact asset pin. Graph identifiers used by the library are generated, not untrusted selector strings; native options and inspector content use text values, not HTML insertion. The library lays out the existing edges without deriving another graph: isolated projections use a grid, connected projections seed that grid and use bounded built-in CoSE with randomization disabled. Filter, focus, keyboard pan/zoom and node pointer interactions are local transforms; source previews never trigger a browser file or network fetch.

Rendering must escape untrusted labels and source excerpts, including </script> and HTML comment openers within embedded JSON. Code must validate cross-field counts and actual HTML references as well as schema shape. An embedding attestation is a claim to verify, not a sandbox or proof that the emitted HTML matches it.

Failure and extension boundaries

Unknown surfaces/views, unavailable input, unsafe output and incompatible cache or asset policies return typed refusals rather than partial success. A no-artifact project skips the future staleness gate; missing or malformed provenance in a declared artifact is a finding. Verification must not regenerate files.

Phase 2 can register more named JSON surfaces without replacing the graph derivation. The authority-graph schema gives the existing literate-ai/authority-graph@2 document a catalog URN without changing its discriminator or exporters. The source adapter calls the existing producer, validates its actual JSON and binds its existing graph identity. It observes the graph itself, not the CLI wrapper's absolute project/output paths. Schema shape checks do not replace the producer's DAG integrity checks or identity calculation.

The adapter returns immutable bytes and fresh decoded values; changes to authored source change the binding, while relocating an otherwise identical project does not. Unsupported surface/view combinations and missing, malformed or invalid authority return typed refusals. The emitter consumes this graph-to-source-snapshot handoff; neither adapter changes an accepted HTML contract or existing graph exporter.

Performance, workflow and portfolio views

performance-history renders the existing diagnostic PerformanceSpan records as run, stage, duration and failure history. It reads at most 4,096 newest records and states when older rows were omitted. An empty log is displayed as unavailable history, not as evidence that builds or tests passed. The native duration bars are scaled against the longest retained span and require no external chart library.

workflow-routing reads only the manifest's declared workflow and routing roots. Workflow Markdown is normalized by the existing generation planner, routing JSON is retained verbatim, and every catalog entry carries the SHA-256 identity of its exact source bytes. Catalog traversal is bounded and rejects links or paths outside their declared root. The view exposes stage dependencies and the complete routing policy; it does not create another workflow executor or router.

litai render dashboard --root ROOT --project PROJECT ... implements the Phase 3 offline composition shell. Every selected project contributes its declared, already-rendered html_render_requests; missing, edited, foreign or unrecognized artifacts refuse the whole dashboard. The shell records each artifact digest and embeds only relative iframe references, so projects under one selected common root can be viewed side by side without a server. It contains no live refresh, discovery daemon or correctness rollup: each pane retains its own exact provenance and verdict. Existing foreign dashboard output is preserved rather than overwritten.

Version agreement health view

The version-check surface supports the health view at version 1.0.0 for a selected project. It calls the existing check_versions(require_project=True) producer, validates its published report schema, and binds a stable semantic projection by content identity. The projection uses the package version as its CLI version label and leaves Git HEAD unset, so writing and committing the page cannot invalidate it. The standalone version-check command still reports the exact development revision and working-tree dirtiness. The projection retains all version and tag verdicts and nested diagnostics, and its literate-ai/version-check@1 discriminator and every nested diagnostic. Rendering does not recalculate the producer's overall ok or convert an unavailable release tag into a failure when the command's policy permits an unreleased checkout.

The HTML displays the overall version result, distribution, release-tag and project results, and expandable schema-catalog diagnostics. Schema-catalog reports do not have an independent overall boolean; the view labels them as diagnostics rather than inventing a passing verdict. All content is readable without JavaScript or network access. This surface requires no external assets and supports inline-only.

The shared publication, cache and staleness machinery binds this projected report, renderer and view. Changed reports are stale; edited visible bytes with borrowed provenance remain unpinned. The generation timestamp describes an observation, not a continuously monitored result. Version agreement does not run project builds, tests or the verify command. A verification dashboard remains separate: directly calling that producer during HTML source reobservation would recurse through its HTML gate, so its report-snapshot and input-currency contract must be explicit.

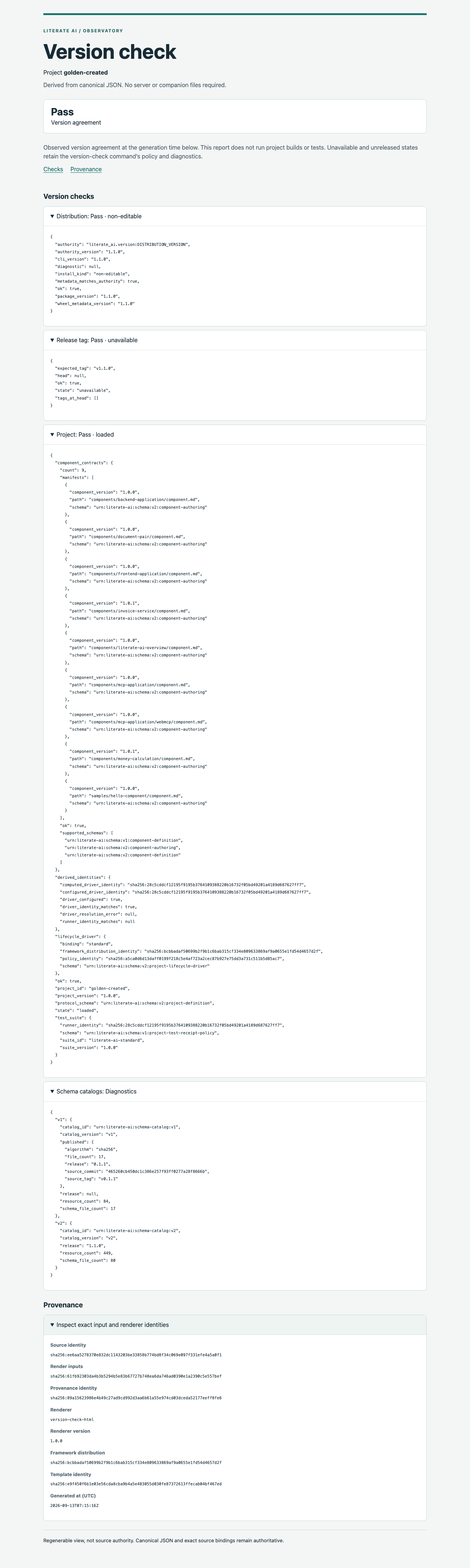

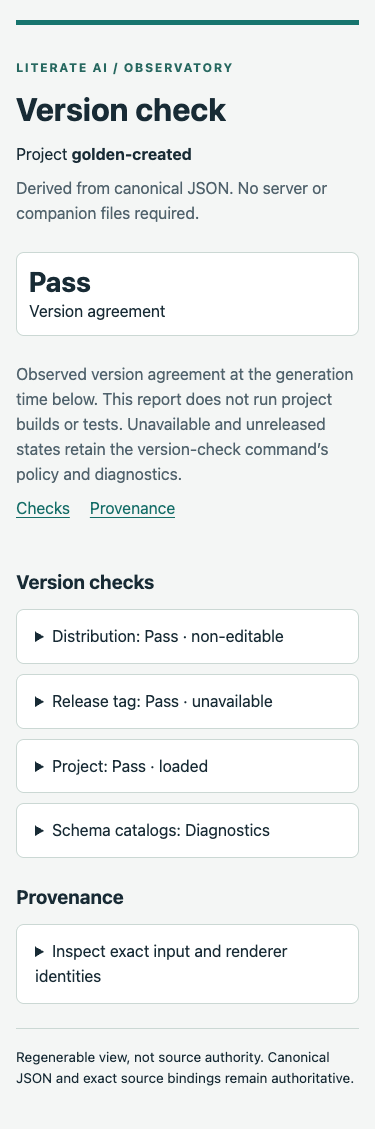

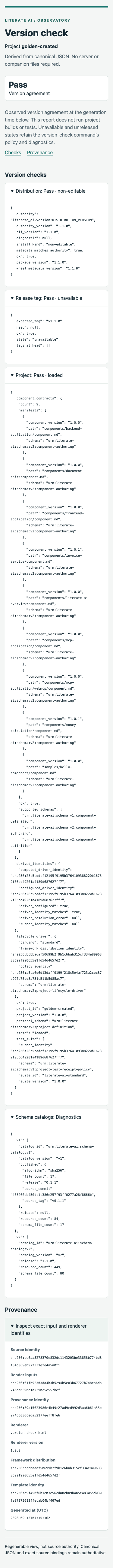

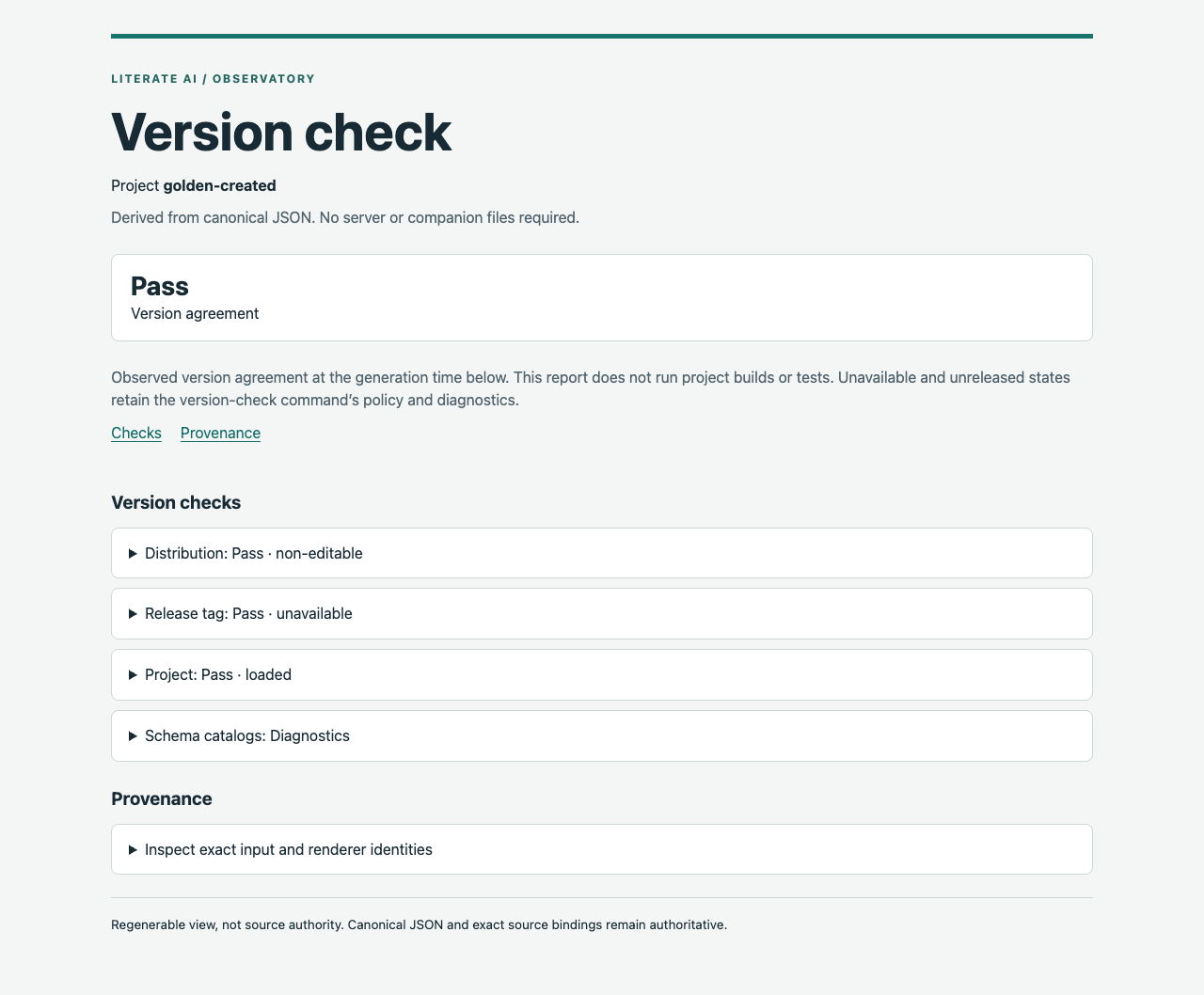

Review screenshots from the installed wheel at 330dd21a show the new view before and after expanding its disclosures, with JavaScript disabled:

These screenshots are retained review evidence for the fixture report, not a live status display. The roadmap evidence records the exact wheel, HTML, report and browser-result identities.

Component lock and resolution-audit health

litai render html --project . --surface lock-health --view health --output locks.html --cache-mode off --external-asset-policy inline-only renders the shared verifier observation under the v2 lock-health schema. The view retains the producer's gate state and detail. Each committed Component lock has its project-relative path, current/not-current/error state, full lock-command report and any structured refusal. Resolution identities, selected providers and both artifact-check diagnostics remain visible in native expandable sections. Repository failure leaves Component checks unobserved; Components without committed locks are outside this verifier gate. Neither case is displayed as successful Component qualification.

The observation calls shared lock orchestration in adapters/component_lock_commands.py and adapters/repository_lock_commands.py. CLI wrappers translate refusals only. HTML does not import the CLI or call full verification, so its source cannot recurse through the HTML verification gate. It computes currentness from current inputs and artifact checks, not from a stored audit alone. This surface has no external assets; its details remain usable without JavaScript. Input drift changes the source identity, and edited visible output fails exact artifact reconstruction. The wheel at 3b0f941d passes installed qualification, including current, missing-audit/stale and restored/current verification. Its retained 10,041-byte artifact passes desktop/mobile browser inspection with scripts enabled and disabled, without companion files, runtime errors or overflow. Full integration and hosted qualification remain open in the active roadmap.

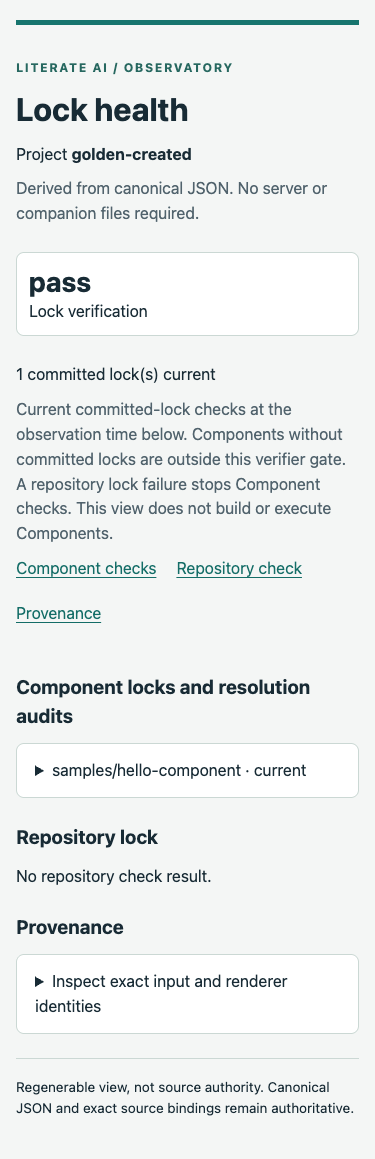

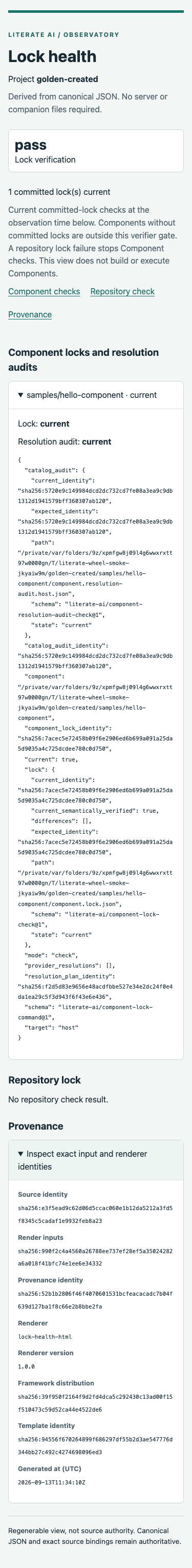

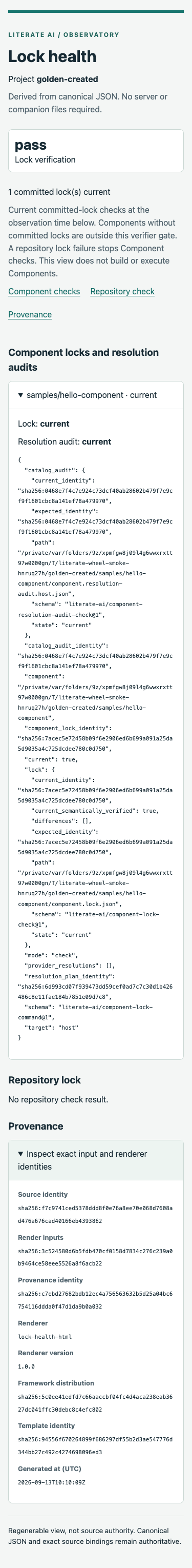

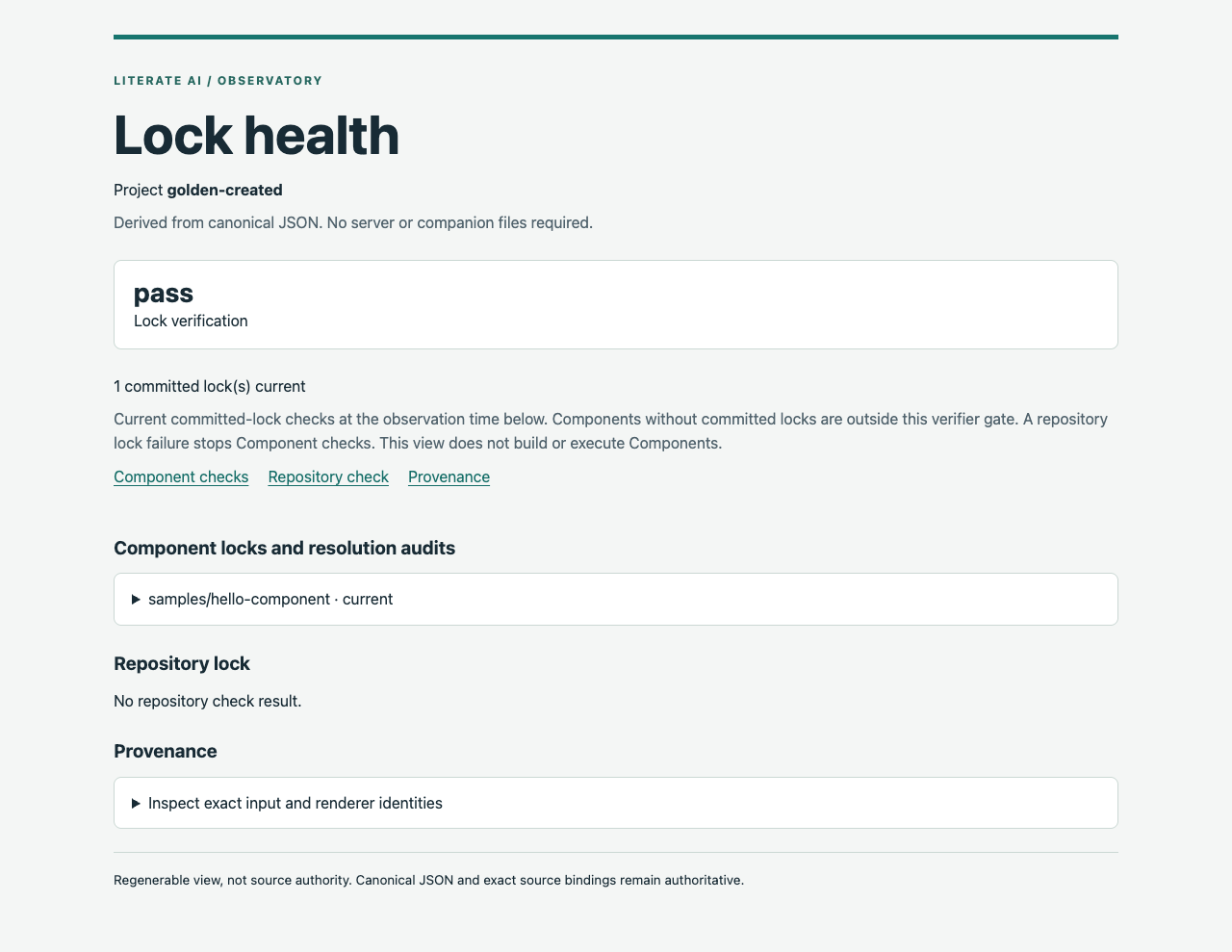

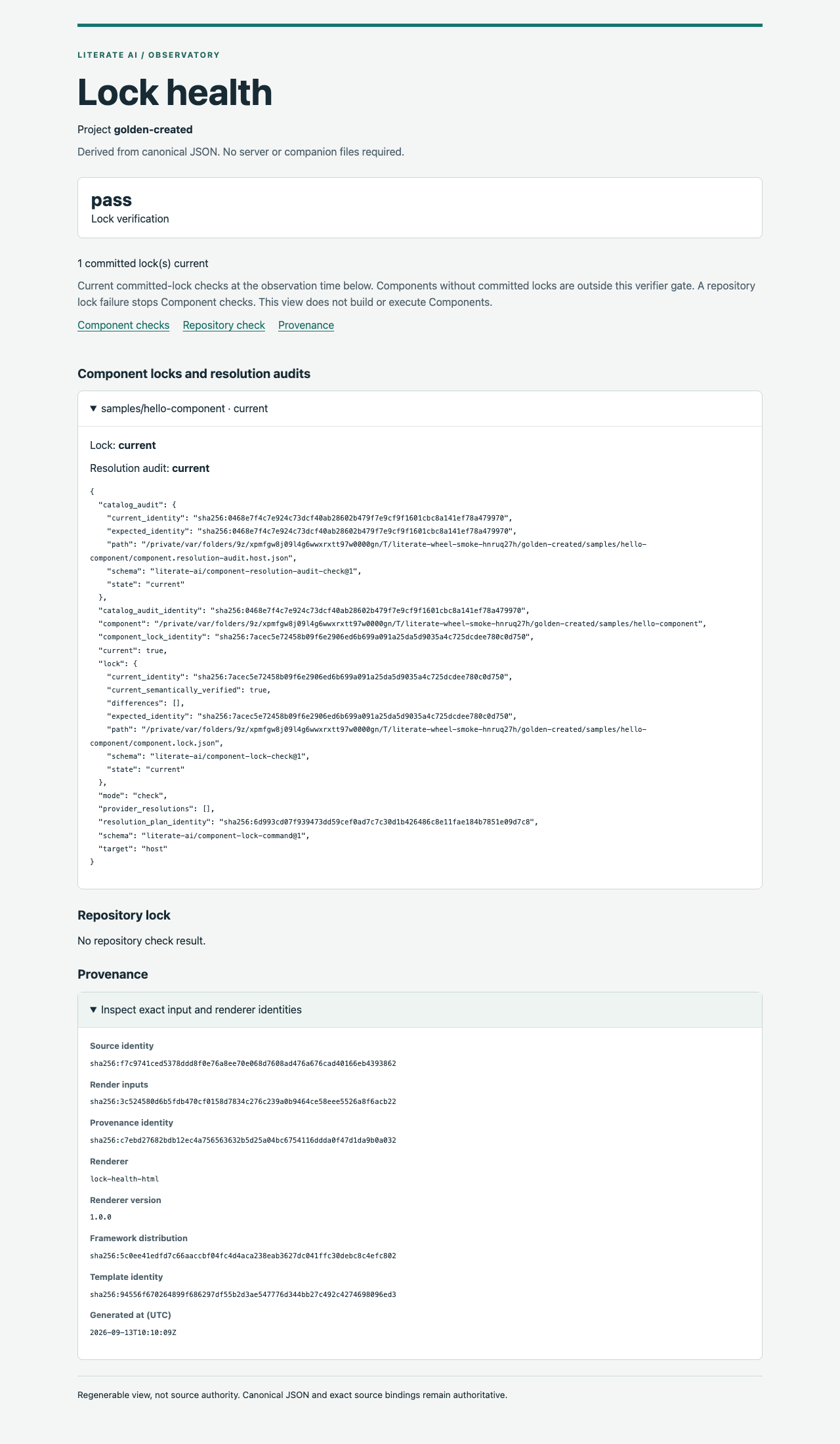

The screenshots below show that installed-wheel artifact before and after expanding its Component and provenance disclosures. This new surface has no prior HTML version to use as a pre-feature screenshot.

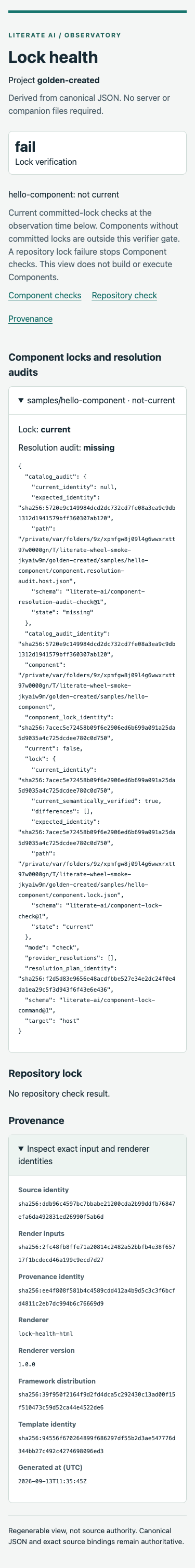

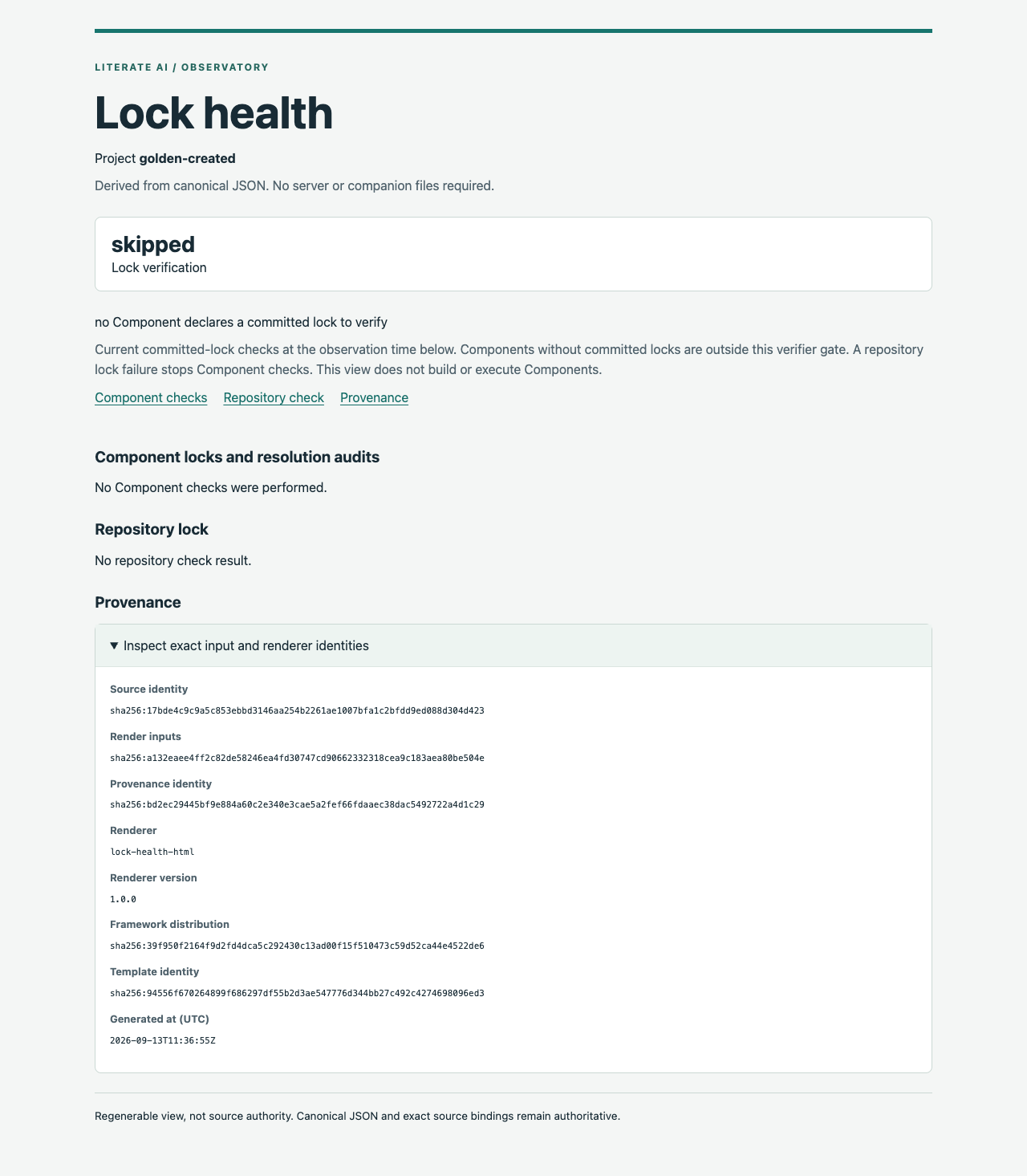

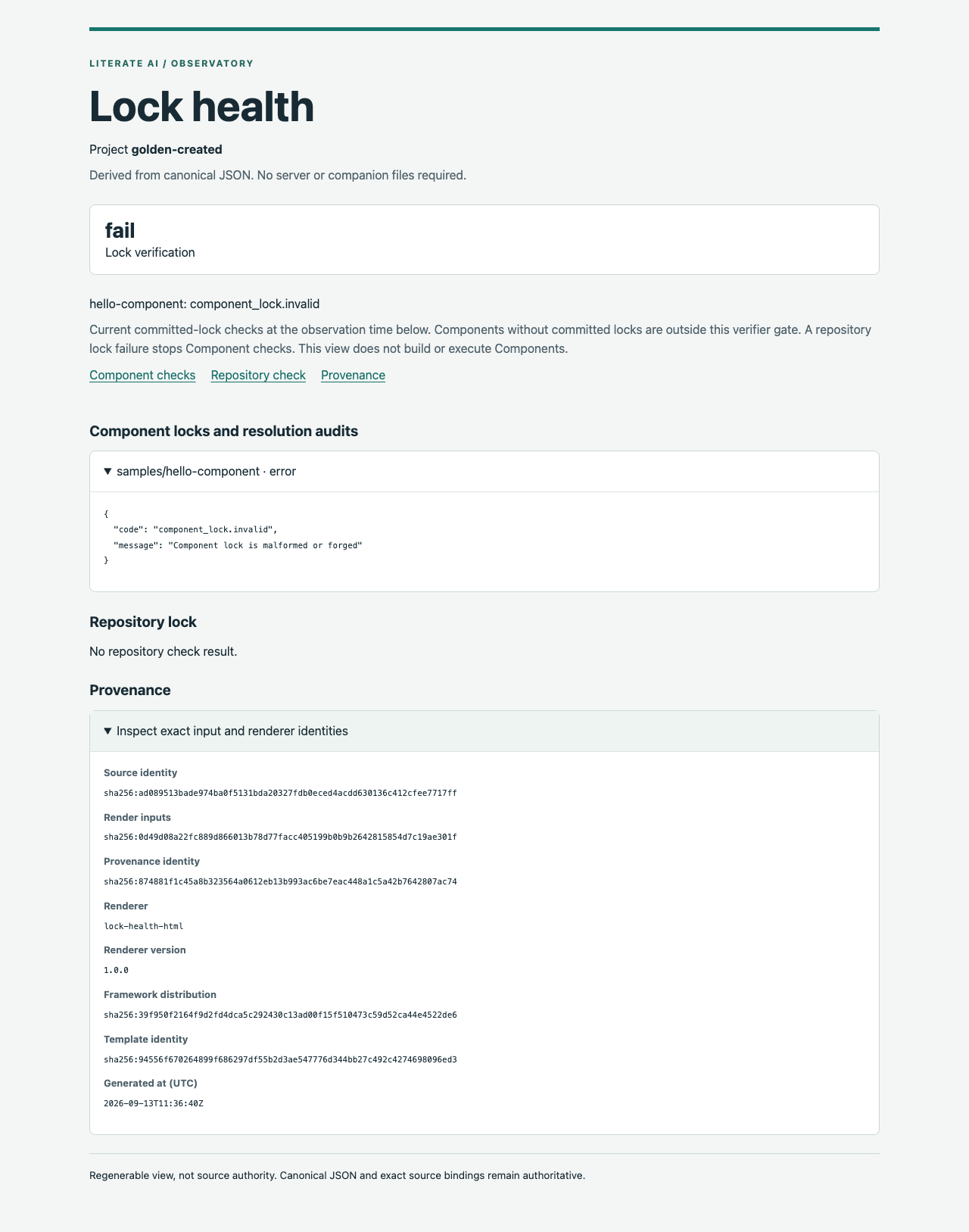

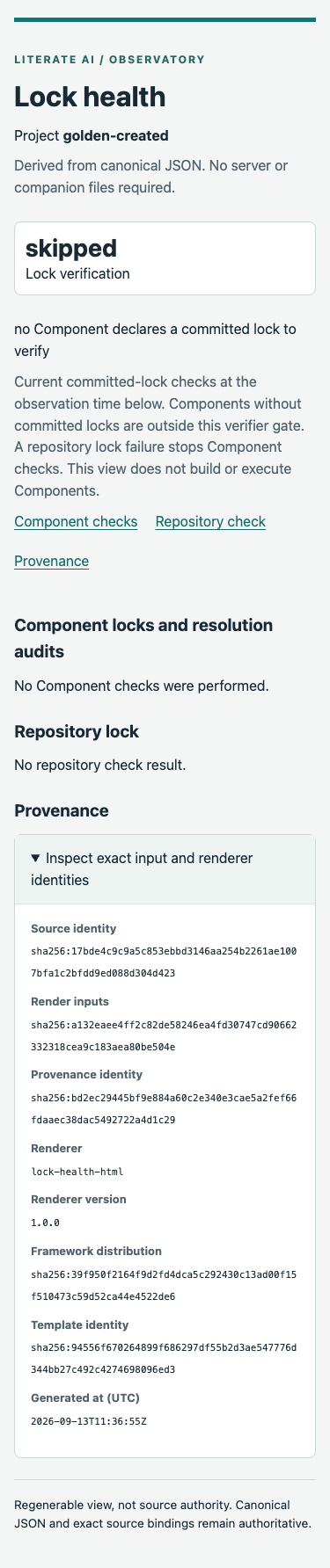

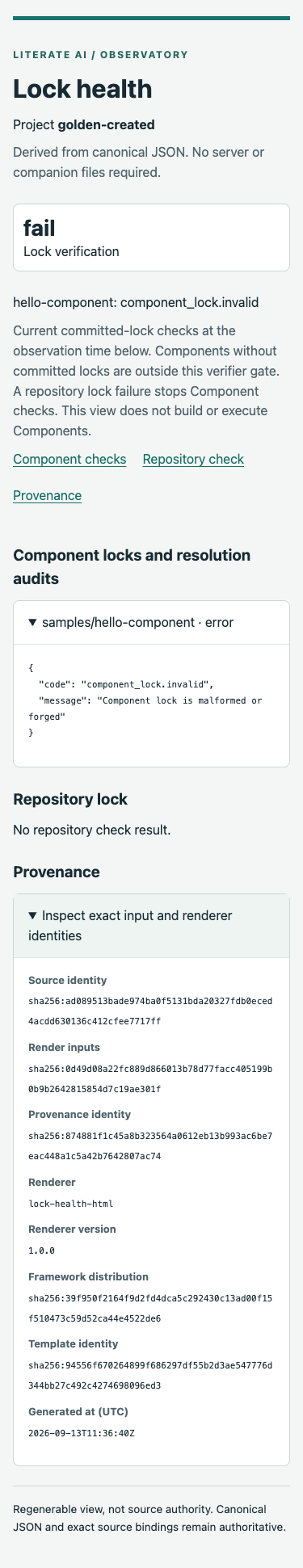

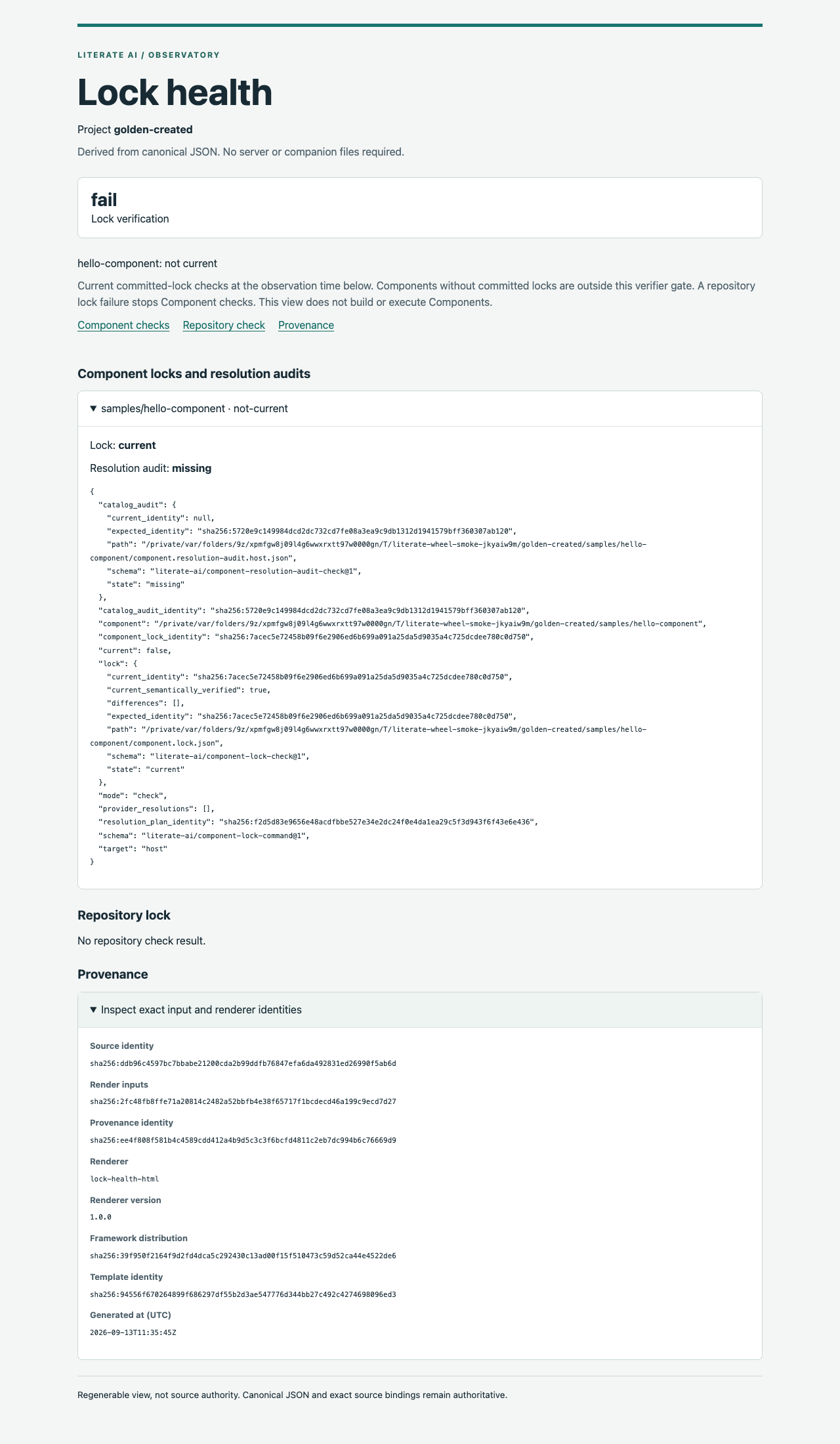

The installed qualification harness also retains separate not-current, malformed-lock error and empty observations, each derived from actual fixture lock/audit changes and compared with the public verifier. It restores the original fixture bytes even when qualification fails. Wheel 64e6dbe0 passed this expanded qualification. All 16 isolated-file browser cases passed across the four states, desktop/mobile and JavaScript enabled/disabled. The eight expanded screenshots below were also inspected for readable diagnostics, correct state labels and overflow. Full-suite and hosted qualification of the final branch remain required.

Verification health

litai render html --project . --surface verification-health --view health --output verification.html --cache-mode off --external-asset-policy inline-only renders the existing literate-ai/project-verify@1 report through a shared read-only adapter. The published schema preserves the CLI wire discriminator, gate diagnostics, counts and verdict. The CLI retains its existing gate selection, ordering, errors and exit codes.

The dashboard observes authority, locks, source intelligence and the test receipt. It excludes the HTML-artifact gate: including that gate would make the report's source identity depend on its own output. The page discloses this coverage and labels its verdict “Selected gates.” Ordinary litai verify still evaluates all five gates, including retained HTML freshness. A skipped check is shown separately from a pass. Observation does not build Components or run their tests.

Each check has native expandable diagnostics that work without JavaScript. Counts, source identity and provenance remain visible offline. The adapter refuses an unavailable or malformed report, different project scope, unexpected gate coverage, or inconsistent counts and verdict. Changed diagnostics invalidate the retained source binding; edited visible output fails artifact verification.

Catalog checks during HTML observation

Resolving the complete schema catalog shares successful Draft 2020-12 checks of exact canonical JSON values within that operation, up to 512 facts. Each catalog still rebuilds its reference registry and retains fresh file and fingerprint checks. The scope retains no paths or observations and clears on success or failure; later operations validate again. This avoids checking repeated v1 support documents twice without treating an earlier filesystem observation as current.
